Ark Gateway

ARK uses Kubernetes Gateway API to provide access to services like the APIs and dashboard. The ARK service ‘Localhost Gateway’ is available to run as a lightweight gateway that allows you to access services.

Quickstart

Install the Localhost Gateway service with:

make localhost-gateway-install

Each of the ARK services includes an HTTPRoute - once the Localhost Gateway has been installed you can see these routes with:

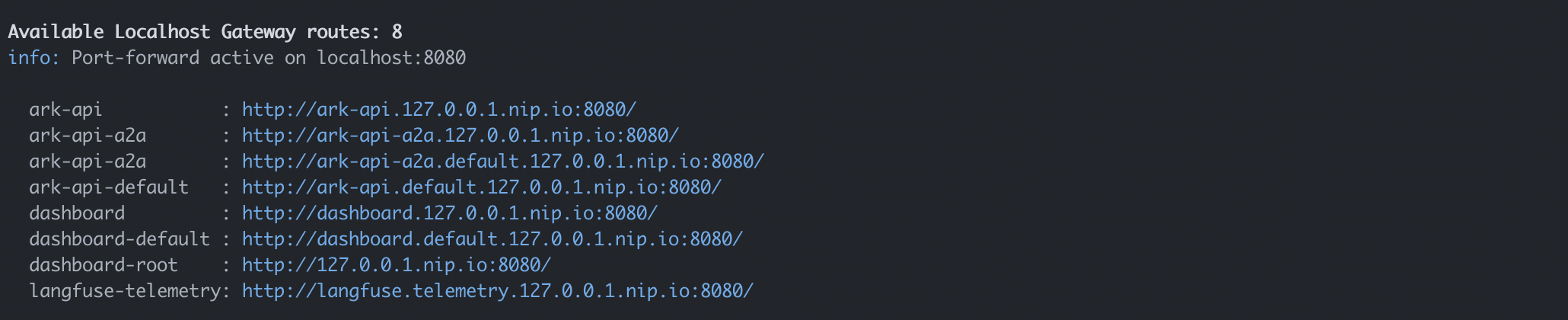

make routes

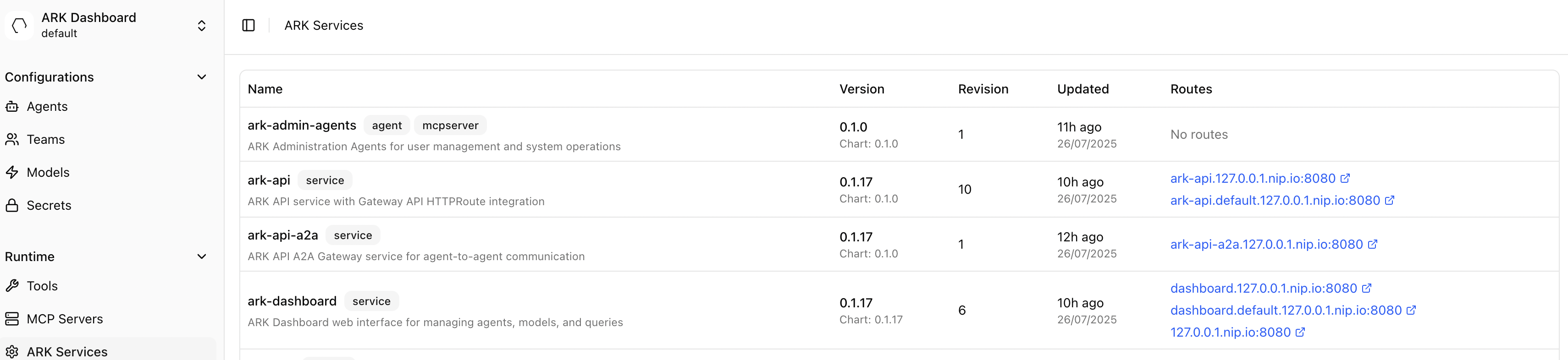

The ARK Dashboard is configured to run on the base route, from the dashboard you can also see configured services as well as the routes that are exposed:

Gateway API Overview

The Gateway API  replaces the Ingress API as the next-generation specification for managing HTTP and TCP traffic in Kubernetes clusters. It separates infrastructure configuration (Gateway) from application routing rules (HTTPRoute), providing better separation of concerns and more powerful traffic management.

The Localhost Gateway service installs the official Gateway CRDs . The implementation of the Gateway used is the popular NGINX Gateway Fabric 2.0 . The NGINX Gateway Fabric CRDs  are installed, and then the NGINX Gateway Fabric 2.0 Helm Chart  is installed.

Architecture

The Localhost Gateway architecture looks like this:

┌─────────────────────────────┐
│ NGINX Gateway Fabric        │ ◄── Controller that watches and manages Gateway resources
└─────────────────────────────┘

┌─────────────────────────────┐
│ Gateway                     │ ◄── name: localhost-gateway, namespace: ark-system
│ (e.g. localhost-gateway)    │     listeners: *.127.0.0.1.nip.io:80, 127.0.0.1.nip.io:80
└──────────────▲──────────────┘     gatewayClassName: nginx
               │ parentRef
               │
┌─────────────────────────────┐
│ HTTPRoute                   │ ◄── hostname: (e.g. ark-dashboard).ark-system.127.0.0.1.nip.io
│ (e.g. ark-dashboard)        │     parentRefs: [localhost-gateway]
└──────────────┬──────────────┘     backendRefs: [(e.g. ark-dashboard) service]
               │ routes to
               ▼
┌─────────────────────────────┐
│ Service                     │ ◄── name: (e.g. ark-dashboard), namespace: ark-system
│ (e.g. ark-dashboard)        │     selector: app=(e.g. ark-dashboard)
└──────────────┬──────────────┘     ports: 3000
               │ routes to
               ▼
┌─────────────────────────────┐
│ Pod                         │ ◄── labels: app=(e.g. ark-dashboard)
│ (e.g. ark-dashboard)        │     ports: 3000
└─────────────────────────────┘

Configuration

Gateway Resource

The Gateway resource defines the infrastructure configuration:

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: localhost-gateway
  namespace: ark-system
spec:
  gatewayClassName: nginx
  listeners:
  - name: http
    port: 80
    protocol: HTTP
    hostname: "*.127.0.0.1.nip.io"
  - name: http-root
    port: 80
    protocol: HTTP
    hostname: "127.0.0.1.nip.io"

HTTPRoute Resources

Services define HTTPRoute resources to expose themselves:

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: ark-dashboard
  namespace: ark-system
spec:
  parentRefs:
  - name: localhost-gateway
    namespace: ark-system
  hostnames:
  - "dashboard.127.0.0.1.nip.io"
  rules:
  - backendRefs:
    - name: ark-dashboard
      port: 3000

Service Integration

ARK services automatically create HTTPRoute resources when they include Gateway API configuration. This allows services to be automatically exposed through the gateway without manual configuration.

Service Requirements

For a service to be exposed through the gateway:

1. Service resource - Standard Kubernetes service
2. HTTPRoute resource - Defines routing rules
3. Gateway reference - Points to the localhost-gateway

Automatic Discovery

The ARK dashboard automatically discovers and displays services that are exposed through the gateway, providing a centralized view of all available services and their routes.

Development Workflow

Local Development

For local development, the localhost gateway provides easy access to services:

1. Install gateway: make localhost-gateway-install
2. Deploy services: Services automatically create routes
3. Access services: Use the provided URLs (e.g., http://dashboard.127.0.0.1.nip.io:8080)

Service URLs

Common service URLs when using localhost gateway:

• Dashboard: http://dashboard.127.0.0.1.nip.io:8080
• ARK API: http://ark-api.127.0.0.1.nip.io:8080
• A2A Gateway: http://ark-api-a2a.127.0.0.1.nip.io:8080

Troubleshooting

Common Issues

Gateway not ready

# Check gateway status
kubectl get gateway localhost-gateway -n ark-system

# Check gateway fabric pods
kubectl get pods -n nginx-gateway

Routes not working

# List all HTTPRoutes
kubectl get httproutes -A

# Check specific route
kubectl describe httproute ark-dashboard -n ark-system

Service not accessible

# Check service endpoints
kubectl get endpoints -n ark-system

# Test service directly
kubectl port-forward service/ark-dashboard 3000:3000 -n ark-system

Next Steps

• Services - Learn about ARK services
• Observability - Monitor your gateway and services
