Phoenix

Arize Phoenix is an open-source AI/ML observability and evaluation platform that provides comprehensive tracing, performance monitoring, and model evaluation capabilities.

Overview

Phoenix integration with ARK provides:

OpenTelemetry Tracing: Automatic trace collection from ARK agents and services
LLM Observability: Track token usage, latency, and model performance
Evaluation Framework: Assess agent responses and behavior
Interactive Dashboard: Visualize traces, metrics, and evaluation results
Multi-namespace Support: OTEL environment variables automatically configured

Note: Compatible with Phoenix versions 4.0.x and later.

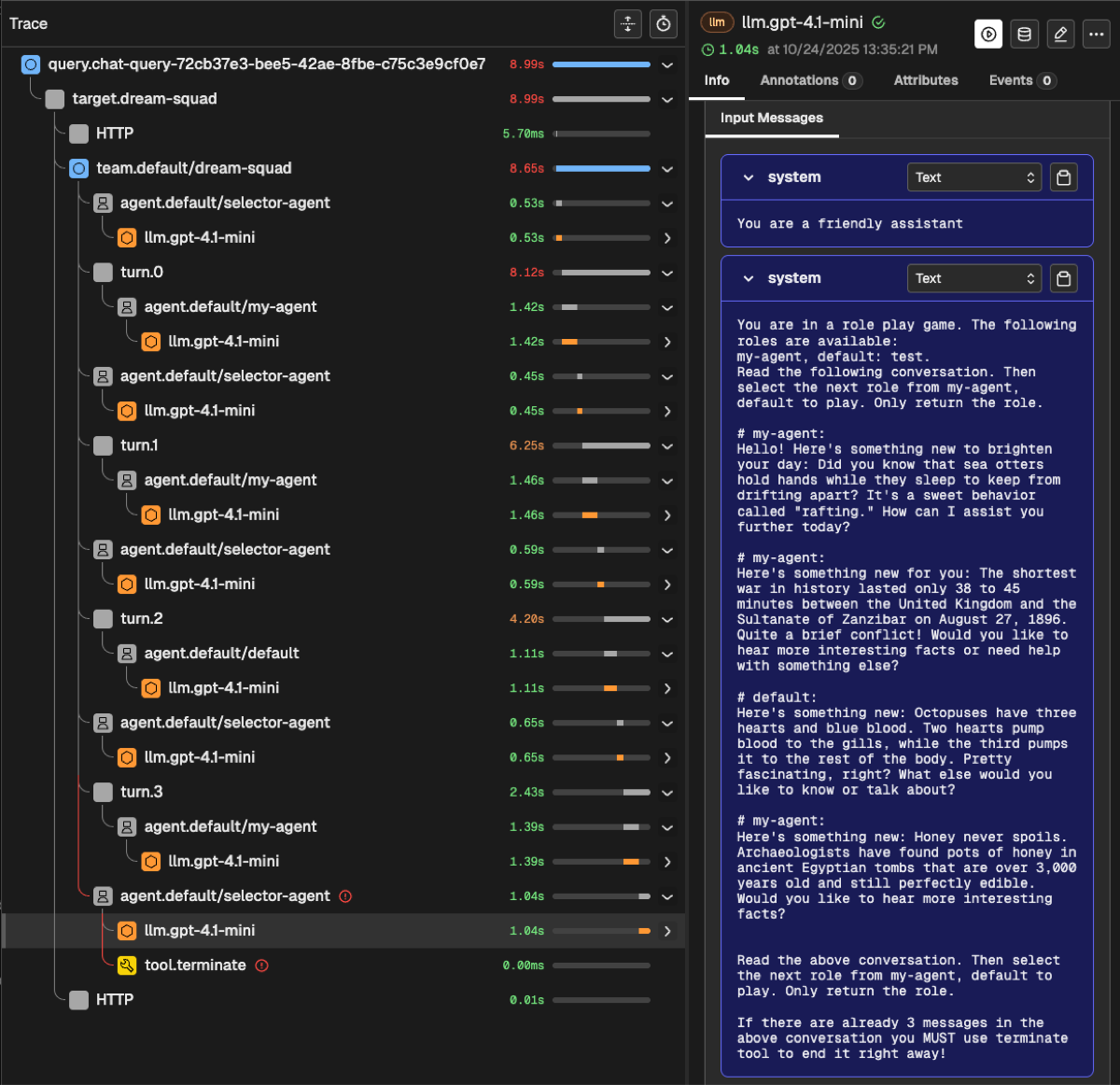

Trace in Phoenix

Quick Start

Installation

Using DevSpace (Recommended for Development):


cd services/phoenix
devspace deploy

Note: DevSpace automatically restarts the ARK controller after deployment to ensure it picks up the new Phoenix configuration.

Using Helm:


cd services/phoenix
helm dependency update chart/
helm install phoenix ./chart -n phoenix --create-namespace

Access Dashboard

With DevSpace:


cd services/phoenix
devspace dev
# Then port-forward to access dashboard:
kubectl port-forward -n phoenix svc/phoenix-svc 6006:6006
# Open http://localhost:6006

With kubectl:


kubectl port-forward -n phoenix svc/phoenix-svc 6006:6006
# Open http://localhost:6006

Configuration

Default Configuration

Phoenix is deployed with these defaults:

Namespace: phoenix
Service Name: phoenix-svc
Port: 6006
OTEL Endpoint: http://phoenix-svc.phoenix.svc.cluster.local:6006/v1/traces

OTEL Environment Variables

Phoenix automatically creates Kubernetes secrets with OTEL environment variables in configured namespaces (default: ark-system and default).

The secret otel-environment-variables contains:


PHOENIX_COLLECTOR_ENDPOINT: http://phoenix-svc.phoenix.svc.cluster.local:6006
PHOENIX_CLIENT_HEADERS: ""
PHOENIX_PROJECT_NAME: default

Using OTEL Secrets in Deployments

Add to your deployment’s container spec:


envFrom:
  - secretRef:
      name: otel-environment-variables
      optional: true

Note: When using DevSpace, the ARK controller is automatically restarted after Phoenix deployment. For manual deployments, existing deployments must be restarted to pick up new/updated secrets:


# Only needed for manual deployments (not DevSpace)
kubectl rollout restart deployment/ark-controller -n ark-system

Custom Configuration

Customize Phoenix by modifying chart/values.yaml:


# Enable HTTPRoute for Gateway API routing
httpRoute:
  enabled: true
  hostnames:
    - "phoenix.example.com"

# Add OTEL secrets to additional namespaces
otelEnvironmentVariableSecrets:
  enabled: true
  namespaces:
    - ark-system
    - default
    - my-custom-namespace

# Configure Phoenix settings
phoenix-helm:
  auth:
    enableAuth: true  # Enable authentication
  service:
    type: LoadBalancer  # Expose externally

Troubleshooting

Dashboard Not Accessible

Check if Phoenix is running:


kubectl get pods -n phoenix
kubectl get svc -n phoenix

Verify port-forwarding:


kubectl port-forward -n phoenix svc/phoenix-svc 6006:6006

No Traces Appearing

Verify OTEL endpoint is configured correctly
Check that applications are instrumented with OpenTelemetry
Ensure OTEL secrets are mounted in your deployments

When using manual deployment methods, restart deployments after updating secrets:


# Only needed for manual deployments (DevSpace handles this automatically)
kubectl rollout restart deployment/ark-controller -n ark-system

OTEL Secrets Not Created

Check if the secret exists:


kubectl get secret otel-environment-variables -n ark-system

If missing, verify otelEnvironmentVariableSecrets.enabled: true in values.yaml and redeploy.

Uninstallation

Using DevSpace:


cd services/phoenix
devspace purge
